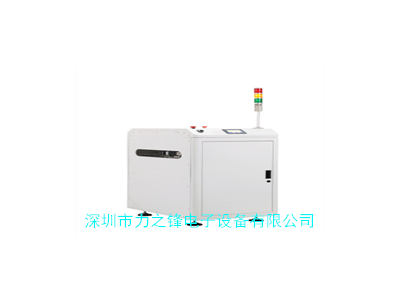

| Purpose: It is used for the function of light board circuit turnover in SMT production |
| 1) Boundary dimension: L600 ㎜ * W910 ㎜ * H1400 |
| 2) The height from the guide rail to the ground is 910± 20 ㎜ adjustable |
| 3) The length of guide rail is 586, and the width is 50-460 adjustable |
| 4) PCB specification: L500XW460X&5, total 2KG |
| 5) PCB board transmission speed 0~4m/min |
| 6) Belt specification 7 ㎜ flat belt |
| 7) It shall be flexible to turn over, and the guide rail can smoothly connect the PCB board with the upper and lower equipment |
| 8) The overturning power is driven by Leisai stepping motor |
| 9) Fully closed box shape, with sealing plates around, surface painted, computer white, |
| 10) Xinjie PLC control, display and control touch screen operation panel |
| 11) Delivery direction: from right to left/from left to right |
| 12) Power supply 220V AC/50HZ/2A; Air source: 0.4~0.6Mpa |
| 12) One set of electric cabinet |
